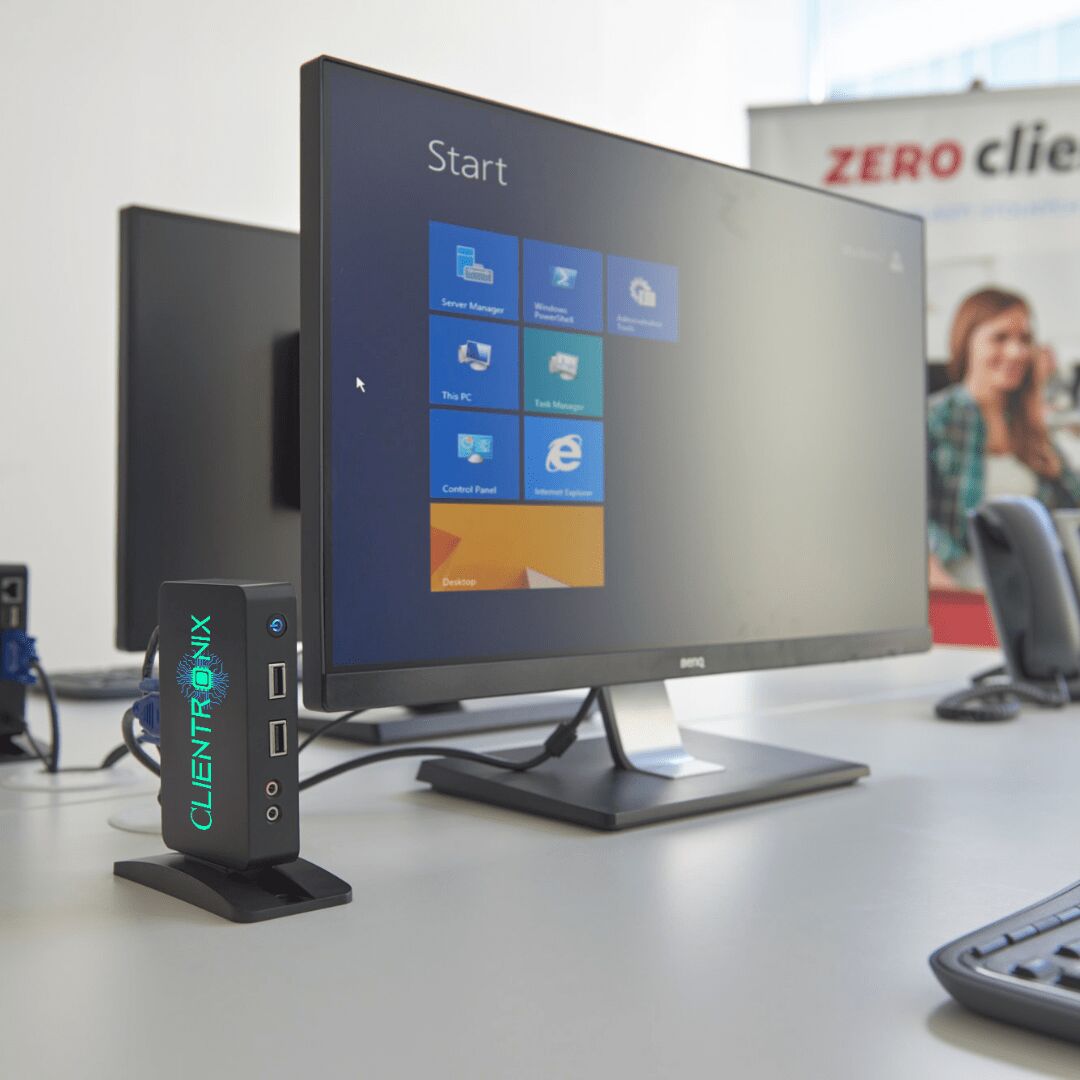

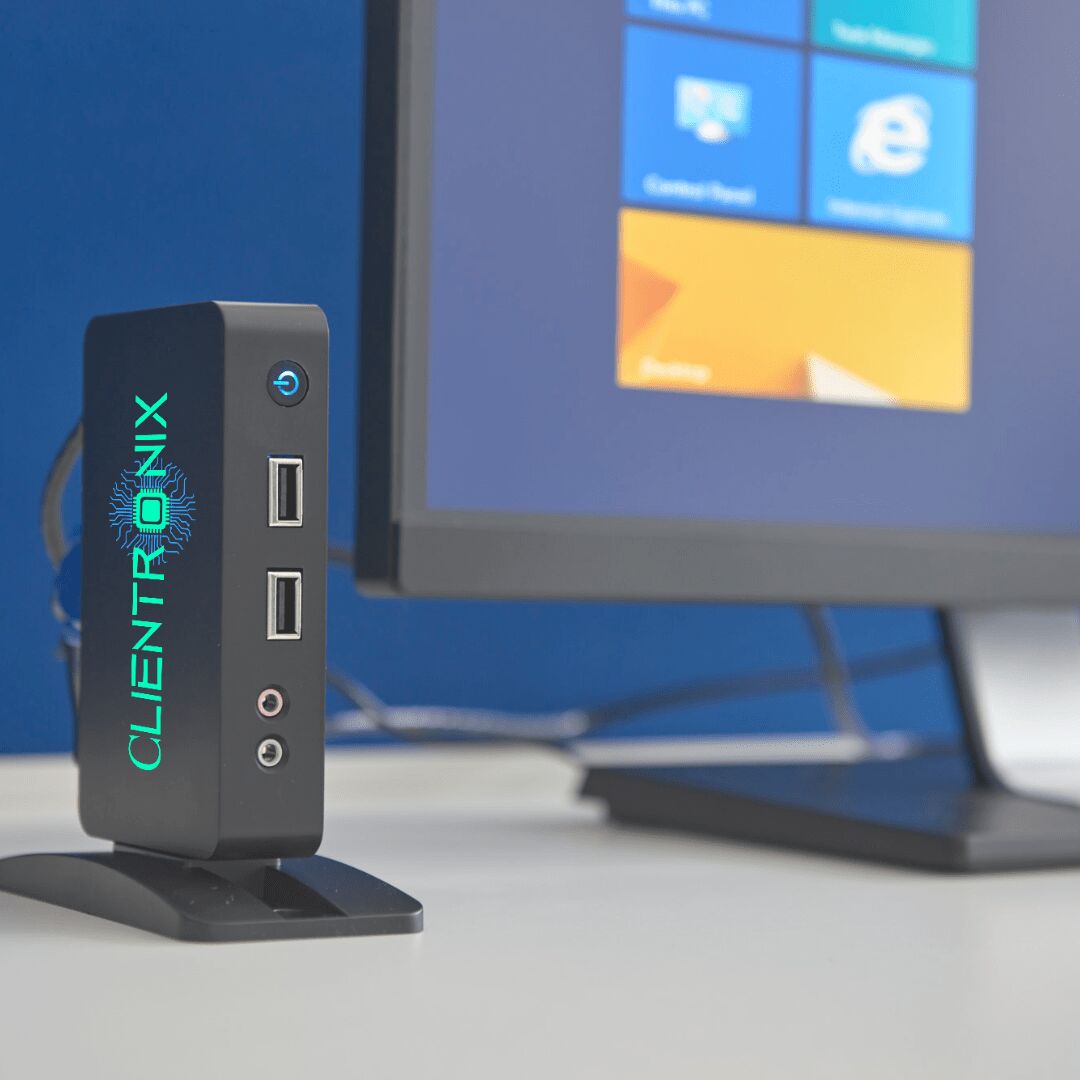

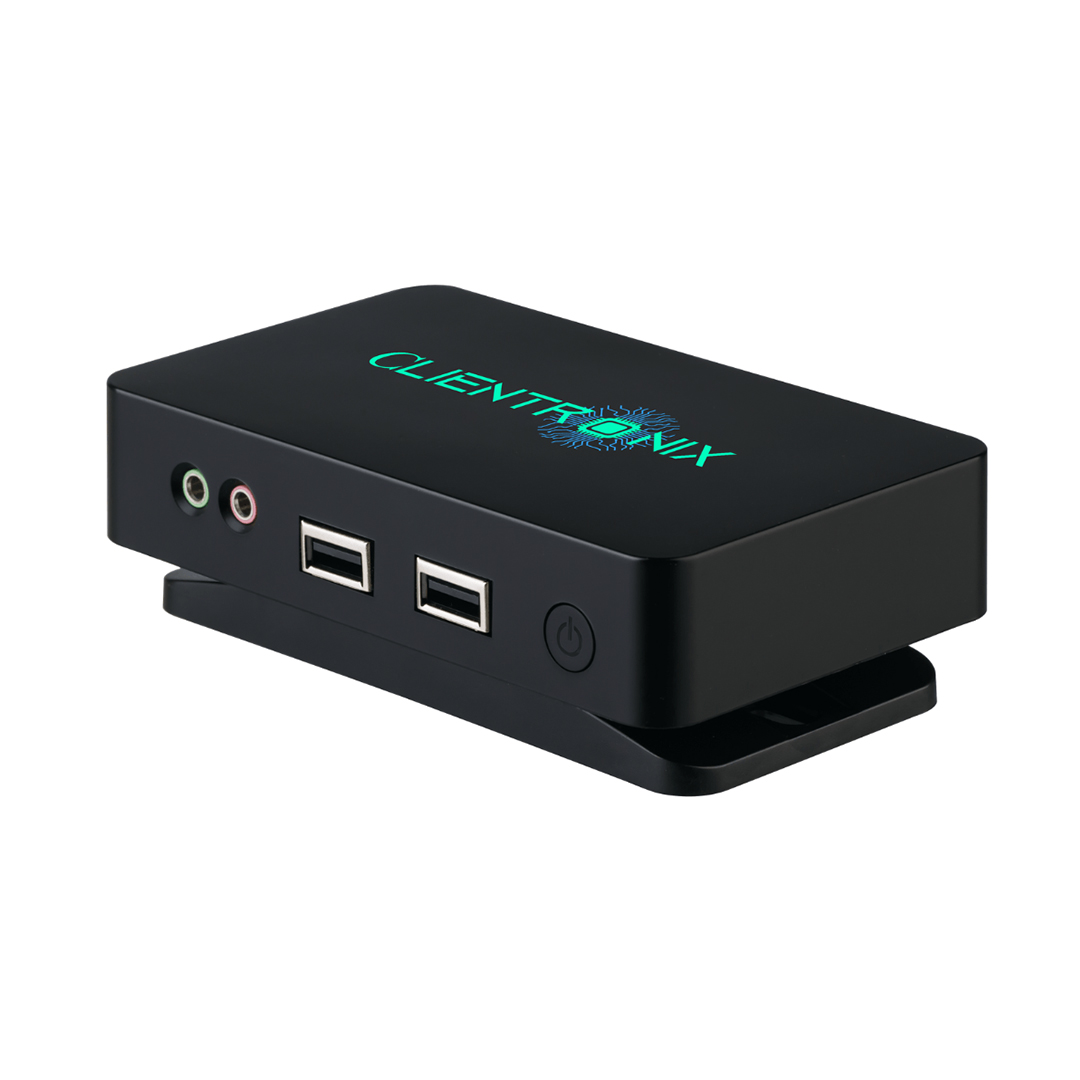

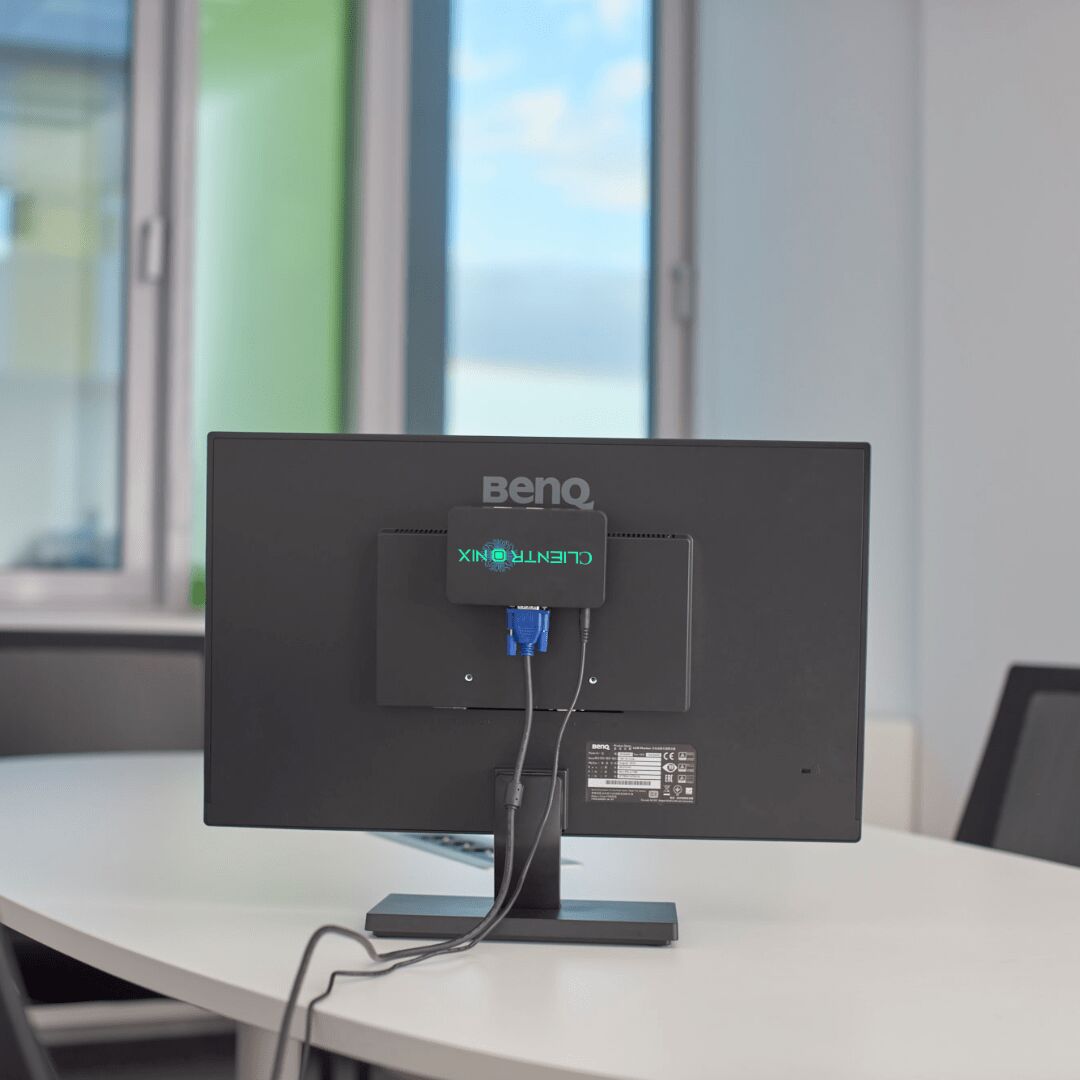

The KV1 model by Zechnologies LLC is a compact, fanless thin client featuring VGA, USB, Ethernet, optional WiFi, and multi-user support. It supports high-resolution displays, secure data access, and various peripherals, making it ideal for efficient, reliable, and secure computing environments.
KV1
Size
Weight
Colour
124[W]*75[D]*26[H] mm
107g
Matte black
Host side & Client Side
VGA
Ethernet
Wifi
10/100 Mbps
Optional external 2.4G/5G Wifi antenna: 802.11b/g/n/ac
Display
USB
Network
Audio
Power
Switch
1*VGA
4*USB 2.0
1*Rj45
1*microphone jack, 1* soeaker jack
1*5V DC
1*Power/Reset switch
5w
l6bits, 44,1 Khz/ 48 Khz audio input / output via 3.5mm stereo jacks
Normal display resolution [ 32 bits & 60 Hz]: 640*480*, 800*600, 1024*768, 1024, and 1600*1200 Wide display resolutions [ 32 bifs @ 60 HZ]: 1360*768, 1366*768, 1366*768, 1440*900,1680* 1050 and 1920*1080.
Host Side
Client Side
Full HD 1080p for all media formats [ for local and web- embedded videos on most media players ].
Currently unavailable. for local videos on VLC player 2.1.5 or newer versions.
Storage devices, USB Hubs, Single, Multi-functional & DoT Matrix Printers, Smart card reader \, Office & POS Scanners, single touch screens, Ukeys, Parallel fo USB Convertors, etc; An external power supply may be required for devices working on large voltage.
vConnect Server Suits permits Up to 99 Users per shared host. Actual number of supported Users depends on the host configuration and the Type of applications used.
All solid-state design. No moving parts, no fans, no local user storage.
No local data storage on device. USB data access controlled by user policy.
O to 40 degrees celsius 10 to 85% relative humidity [ non- condensing] No moving parts permits use in high dust / participate / vibration environments.
>100,000 h
Management software: Clientronix’s vConnect server Suite with dynamic desktop protocol [DDP].
Microsoft windows XP SP3 Pro 32bits, 7, 8, 8.1. 10 & 11 [excluding starter, Home Basic and Insider editions], server 2003 32biT, 2Z008R2, 2012, 2012R2, 2016, 2019,2022 Multipoint server 2011, 2012.

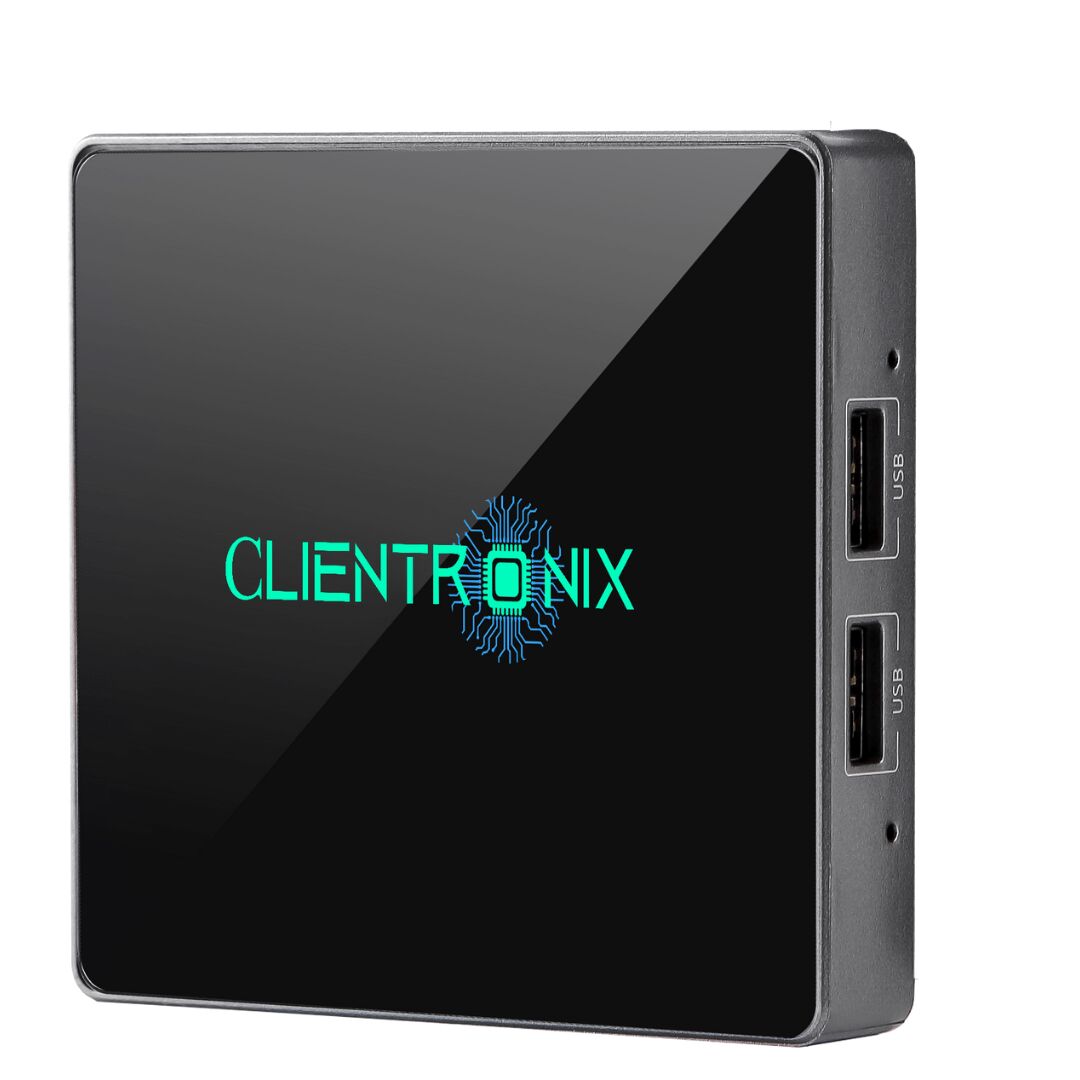

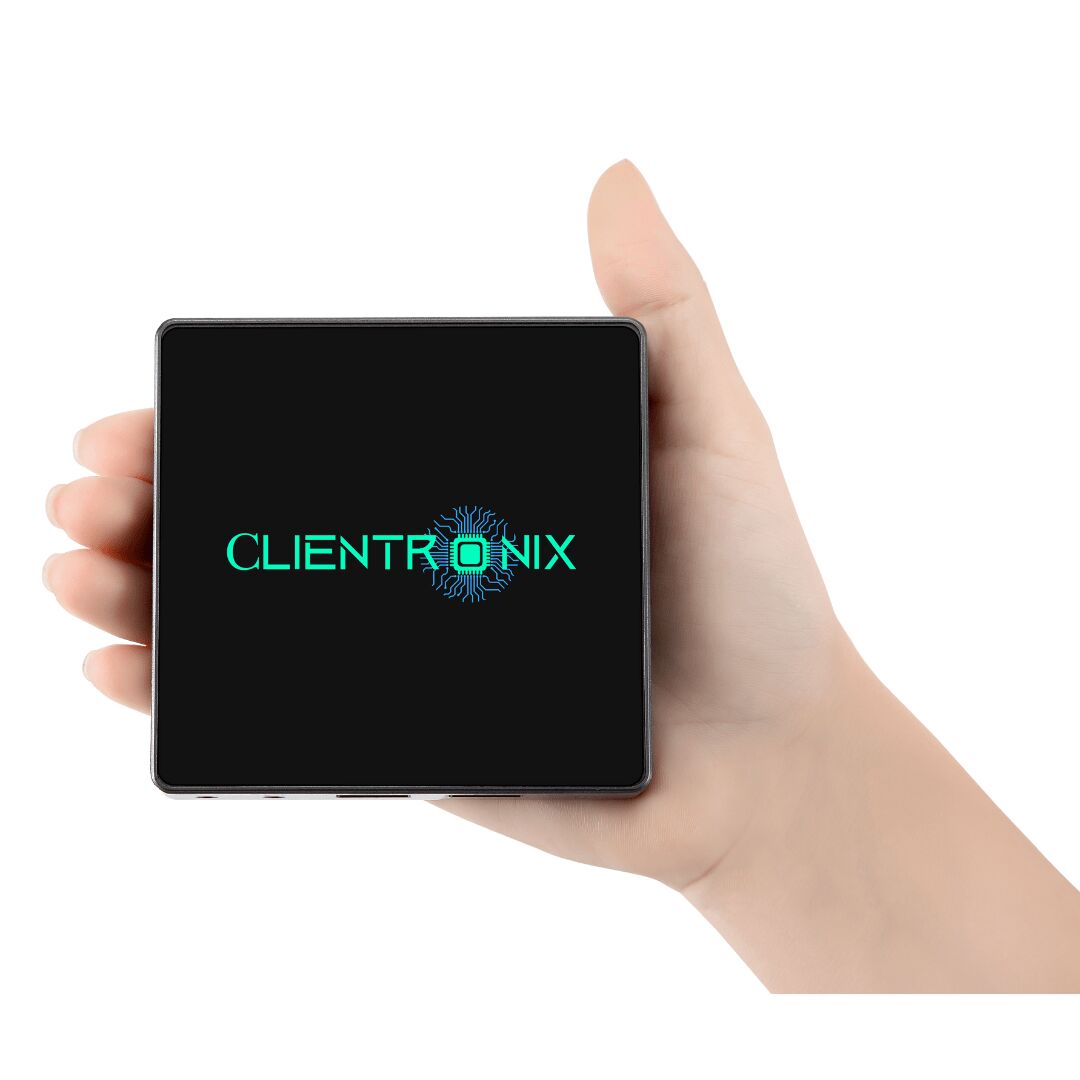

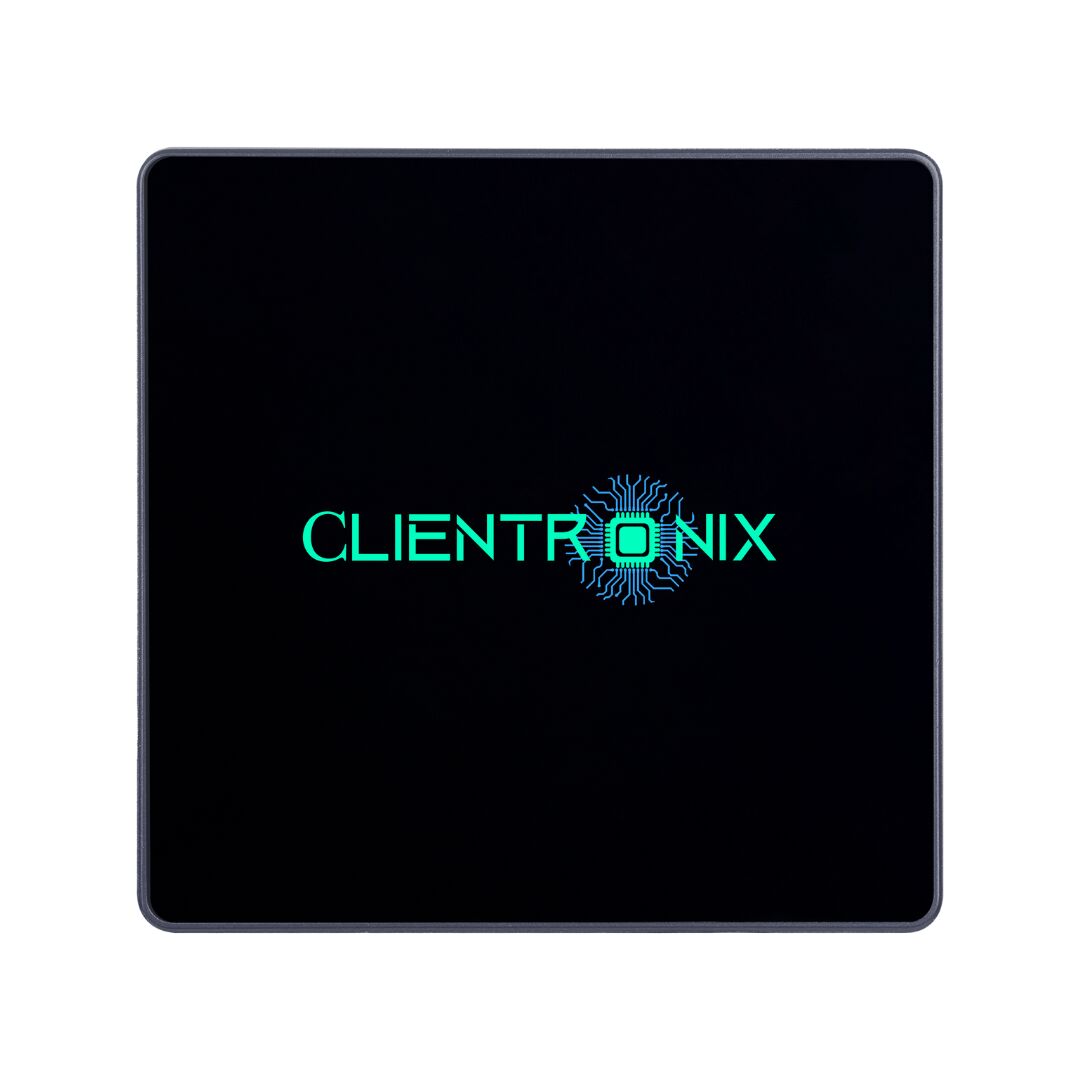

The kv3 model by Zechnologies LLC is a compact, fanless thin client featuring VGA, USB, Ethernet, optional WiFi, and multi-user support. It supports high-resolution displays, secure data access, and various peripherals, making it ideal for efficient, reliable, and secure computing environments.
KV3
Size
Weight
Colour
93[W]*90[D]*18[H]mm
150g
Dimond black & Moon silver black
Host side & Client Side
HDMI / VGA
Ethernet
Wifi
10/100/1000 Mbps
Optional external 2.4G/5G Wifi antenna: 802.11b/g/n/ac
Display
USB
Network
Audio
Power
Switch
1*VGA, 1*HDMI
4*USB 2.0
1*Rj45
1*microphone jack, 1* soeaker jack
1*5V DC
1*Power/Reset switch
5w
l6bits, 44,1 Khz/ 48 Khz audio input / output via 3.5mm stereo jacks
Normal display resolution [ 32 bits & 60 Hz]: 640*480*, 800*600, 1024*768, 1024, and 1600*1200 Wide display resolutions [ 32 bifs @ 60 HZ]: 1360*768, 1366*768, 1366*768, 1440*900,1680* 1050 and 1920*1080.
Host Side
Client Side
Full HD 1080p for all media formats [ for local and web- embedded videos on most media players ].
Currently unavailable. for local videos on VLC player 2.1.5 or newer versions.
Storage devices, USB Hubs, Single, Multi-functional & DoT Matrix Printers, Smart card reader \, Office & POS Scanners, single touch screens, Ukeys, Parallel fo USB Convertors, etc; An external power supply may be required for devices working on large voltage.
vConnect Server Suits permits Up to 99 Users per shared host. Actual number of supported Users depends on the host configuration and the Type of applications used.
All solid-state design. No moving parts, no fans, no local user storage.
No local data storage on device. USB data access controlled by user policy.
O to 40 degrees celsius 10 to 85% relative humidity [ non- condensing] No moving parts permits use in high dust / participate / vibration environments.
>100,000 h
Management software: Clientronix's vConnect server Suite with dynamic desktop protocol [DDP]; Optional vConnect classroom control at additional cost.
Microsoft windows XP SP3 Pro 32bits, 7, 8, 8.1. 10 & 11 [excluding starter, Home Basic and Insider editions], server 2003 32bit, 2008R2, 2012, 2012R2, 2016, 2019, 2022 Multipoint server 2011, 2012.
